EV charging cable product standards:
The main standards for EV charging cables are: IEC62893, EN50620 (IEC62893-3 is equivalent to EN50620), UL62, JCS4522, GB/T 33594, CQC1103-1105, DEKRA K175, TUV 2PFG 1908
FAFA-E has reached a strategic cooperation with OMG EV CABLE, the world's leading ev cable manufacturer, to provide various standards of electric vehicle charging cables, if you have ev cable needs, please contact us at Sale@fafa-e.com
| IEC standard | IEC 62893-1/2/3:2017 |
| European standard | EN 50620:2017(less than 35mm2) |
| Chinese standard | GB/T 33594-2017 |
| US/Canadian Standard | UL 62 CSA C22.2 No.49 |
| Japanese standard | JCS 4522 |

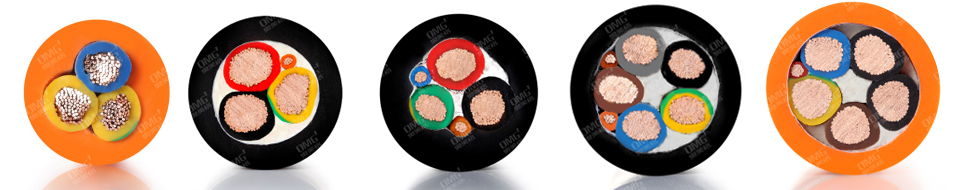

Europe EN 50620, IEC62893 standard EV charging cable
Reference Standard：prEN 50620、IEC62893
Certificate No.:6003773.01

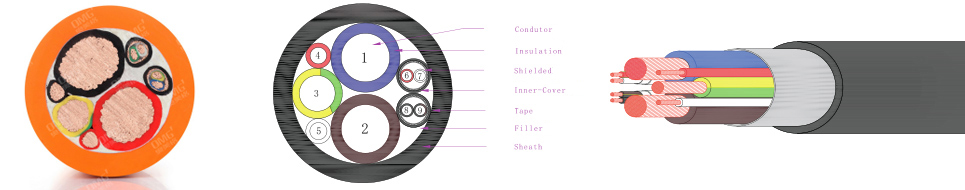

Product description:
| Construction | Features |
| 1.Conductor | Rated temperature ：-40℃～90℃ |
| Material: Bare Copper | Rated Voltage ： AC 300/500V、 450/750V；DC 1000V |
| 2.Insulation | Flame Test ：VW-1 Test method Comply with UL 2556 |
| Material: ERP | Min： Bending Radius: ≥6*OD |
| Color： Brown，Blue，Yellow/Green | Dielectric Voltage： 2.5kVac/15min. No Breakdown |
| 3.Filler | Low temperature impact ：-40℃, No cracks |
| Material: PP Cord | Hot Shock：150℃/1h No cracks |
| 4.Tape | Oil Resistance ：IRM902,IRM903,Gasoline 20h OD Variation≤15% No Cracks |
| Material:Non-woven fabrics | Crush resistance：Sq≤4, crush force≥4KN ; 4≤Sq≤35, crush force≥11KN; |
| 5.Sheath | Resistance to Acid and alkali：168h, Tensile Strength Variation ≤30%; Elongation≥100% |
| Material: TPU | Environmental Requirements：Compliant with RoHS and REACH |
| Color: Black （customizable） | |
Product number |
specification |
Conductor twisted outer diameter |
Conductor resistance |
Reference allowable current |
Unshielded Complete outer diameter |
Cable packaging |
H05BZ-F |
3×1.5mm2+(0～2)×(0.5～0.75)mm2 |
1.6 |
13.3 |
14A |
8.6~9.6 |
800m/700# |
3×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
25A |
9.8~10.8 |
800m/700# |
|
H07BZ-F |
3×1.5mm2+(0～2)×(0.5～0.75)mm2 |
1.6 |
13.3 |
14A |
8.8~9.6 |
800m/700# |
3×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
25A |
10~10.8 |
800m/700# |
|
3×4.0mm2+(0～2)×(0.5～0.75)mm2 |
2.8 |
4.95 |
35A |
11.5 |
500m/700# |
|
3×6.0mm2+(0～2)×(0.5～0.75)mm2 |
3.5 |
3.30 |
44A |
13.2 |
400m/800# |
|
3×10.0mm2+(0～2)×(0.5～0.75)mm2 |
4.5 |
1.91 |
62A |
16.3 |
500m/950# |
|
3×16mm2+(0～2)×(0.5～0.75)mm2 |
5.7 |
1.21 |
82A |
19 |
500m/700# |
|
5×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
20A |
13.5 |
500m/950# |
|
5×4.0mm2+(0～2)×(0.5～0.75)mm2 |
2.8 |
4.95 |
30A |
15 |
400m/950# |
|
5×6.0mm2+(0～2)×(0.5～0.75)mm2 |
3.5 |
3.30 |
38A |
16.8 |
300m/950# |
|
5×10.0mm2+(0～2)×(0.5～0.75)mm2 |
4.5 |
1.91 |
54A |
20 |
300m/1200# |
|
5×16mm2+(0～2)×(0.5～0.75)mm2 |
5.7 |
1.21 |
71A |
23.5 |
800m/700# |
|
5×25mm2+(0～2)×(0.5～0.75)mm2 |
7.2 |
0.78 |
94A |
29 |
800m/700# |
|
5×35mm2+(0～2)×(0.5～0.75)mm2 |
8.4 |
0.554 |
117A |
32.8 |
500m/700# |
The above product specifications, sizes, and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.

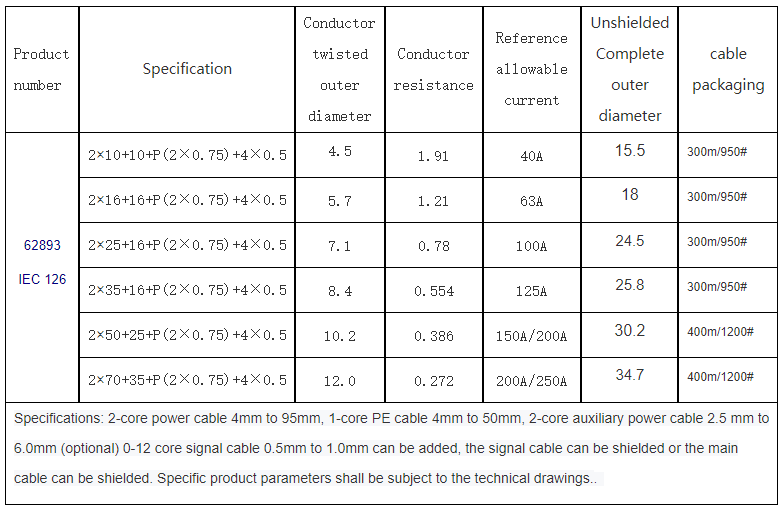

IEC62893 standard DC charging cable product introduction：
TUV certified DC charging cable
Reference Standard ：IEC62893-4-1:2020
Certificate number R 50438281 0001
Product description
| Construction | Features |
| 1.Conductor | Rated temperature ：-40℃～90℃ |
| Material: Bare Copper | Rated Voltage: DC1500V |
| 2.Insulation | Flame Test:Testing method according to EN60332-1-2 |
| Material：EVI-2 | Bending Radius:≥6*OD |
| Color: Yellow/Green，Blue，Brown、Black、Gray | Dielectric Voltage:2.5kVAC for main core，2.0kV AC for CC/CP |
| 3.Filler | Low temperature impact:-40℃No cracks |
| Material：PP or cotton yarn | Hot Shock:150℃/1h No cracks |
| 4.Tape | Oil Resistance:IRM 902 100℃168h Tensile Strength Variation<±40%， |
| Material：Non-woven fabric | Elongation Variation<±30% |
| 5.Sheath | Crush resistance:Sq≤4crush force ≥4KN;4≤Sq≤35 crush force≥11KN |
| Material：TPU | Resistance to Acid and alkali:168hTensile Strength Variation≤30% Elongation ≥100% Environmental Requirements:Compliant |
| Color: Any color | with RoHS2.0 and REACH |
FAFA-E has reached a strategic partnership with OMG, the world's leading manufacturer of electric vehicle cables, please contact us if you have any need, Email: Sale@fafa-e.com
